Fuel your productivity

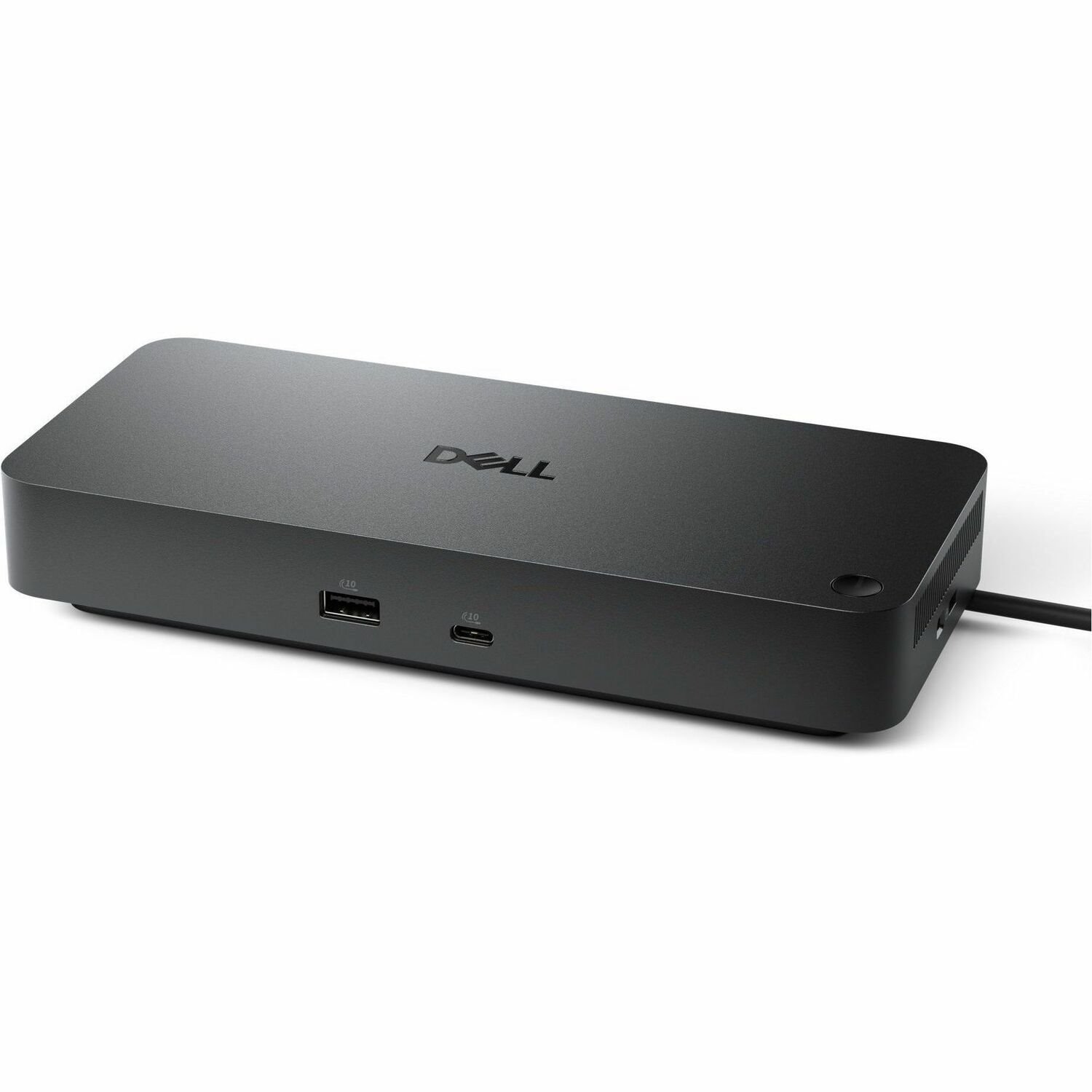

Gain the versatility to create your ideal workspace with a dock featuring 6 USB ports, support for 4 displays and driving up to 100W of power delivery to the latest Dell AI PCs for optimal productivity.
More manageable
Keep your dock up to date and work without interruption.
Improved manageability
Manage your dock from the Dell Device Management Console by utilising Dell Display and Peripheral Manager installed on your PC.
Simplify firmware updates
Reduce IT complexity by deploying a single firmware file across workspaces.
Minimise end-user disruption with silent firmware updates that are executed upon dock disconnection.
Work with confidence
Enhance your docking experience with universally compatible features including MAC Address Pass-Through and Power Button Sync, for a better docking experience across brands.
Connect your way
Configure your workspace to your liking with an ambidextrous USB-C cable[2] that can be routed left or right.
Designed for sustainability
The Dell Pro Dock is built with post-consumer recycled materials and packaged with recycled or renewable packaging, and offers less power consumption on standby mode.
- General Information
- Manufacturer
- Dell Technologies
- Manufacturer Website Address
- http://www.dell.com.au
- Brand Name
- Dell
- Product Line
- Pro Dock
- Product Type
- Docking Station
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Connectivity Technology
- Wired
- Device Supported
- Notebook
- Desktop PC
- Features
- Power Delivery Pass-through
- Management Features
- MAC Address Pass-through
- PXE Boot
- Wake-on-LAN
- WLAN to LAN Switch
- Port Disablement
- Dock Power Button Sync
- Kernel Direct Memory Access (DMA) Protection
- Number of Displays Supported
- 4
- Screen Mode Supported
- WQHD @ 60Hz
- WQHD
- 5K @ 60Hz
- 6K @ 60Hz
- HD @ 60Hz
- FHD @ 60Hz
- QHD @ 60Hz
- 4K @ 60Hz
- Supported Resolutions
- 3440 x 1440
- 5120 x 2160
- 6144 x 3456
- 1280 x 720
- 1920 x 1080
- 2560 x 1440
- 3840 x 2160
- Maximum Data Transfer Rate
- 1.25 GB/s
- Security Slot Type
- Kensington Security Slot
- Power Delivery
- 100W (Dell Systems)
- 96W (non-Dell Systems)
- Network & Communication
- Ethernet Technology
- 2.5 Gigabit Ethernet
- Interfaces/Ports
- Host Interface
- USB Type C
- Total Number of USB Ports
- 6
- Number of USB Type-A Ports
- 4
- Number of USB Type-C Ports
- 3
- USB Type-A
- Yes
- USB Type-C
- Yes
- USB Type-C Detail
- 1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4, 1 x USB-C 3.2 Gen 2 (10 Gbps)
- Network (RJ-45)
- Yes
- Number of DisplayPorts
- 2
- DisplayPort
- Yes
- DisplayPort Version
- 1.4
- Number of HDMI Ports
- 1
- HDMI
- Yes
- HDMI Version
- 2.1
- Software
- Operating System Supported
- Windows 10
- Windows 11
- Ubuntu
- Red Hat Enterprise Linux
- ChromeOS
- macOS
- Power Description
- Maximum Power Supply Wattage
- 130 W
- Power Source Type
- Power Adapter
- Physical Characteristics
- Height
- 205 mm
- Width
- 90 mm
- Depth
- 35.3 mm
- Weight (Approximate)
- 550 g
- Miscellaneous
- Package Contents
- Pro Dock - WD25
- Power Adapter
- Power Cord
- Documentation (Quick Start Guide, Safety, Environmental, and Regulatory Information)
- Kensington Security Slot
- Yes
